Description:
- For detecting NPN and PNP transistor, capacitor, resistor,
diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac
and battery, etc.
- Can also be used to detect infrared wave forms.
- After detection, align the infrared remote control with the
""IR"" light, then press the button in the remote control, if the
detector successfully decode it, it will display the data code
and infrared wave form.
- One button operation, automatically detect and shutdown, and
you can also press the multi-functional button to close the
detector.
- Put the pins of component in corresponding area, then dial the
little handle and the detector will test it automatically,
finally the results will display on the back light TFT screen
clearly.

Specification:
- Self test with automatic calibration
- Color: White
- Size: 8.8x7x2.8cm/ 3.46x2.76x1.10 inch
- Display: 1.8 inch TFT Screen, Color Screen
- Diode Range: less than 4.5V
- Zener Diode:Transistor Detect Area: 0.01-4.5V
- Zener Diode Detect Area: 0.01-30V
- Triac Range: IGT less than 6mA
- Capacitance: 25pF-100mF
- Resistor: 0.01-50MΩ
- Inductance: 0.01mH-20H
- Power Voltage: 3.7V
- Power: Built-in Rechargeable Lithium Battery

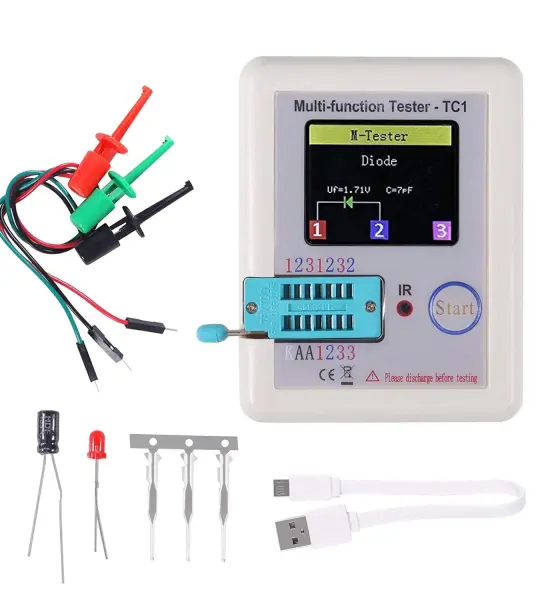

Package Includes:
1 X Multi-functional TFT Transistor Tester
1 X Electronic Component Set
3 X Pieces Test Hook
1 X Piece Cable
