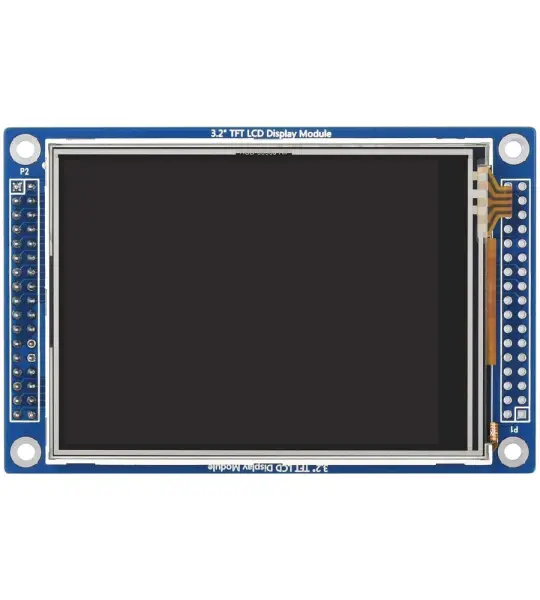

This is a 3.2 inch Raspberry Pi LCD 320x240 Resistive Touch Screen TFT Display SPI LCD. It is commonly compatible with Raspberry Pi 3 Model B/2 B/B/A. This resistive touch screen TFT LCD designed to work directly with Raspberry Pi, Raspbian Image is provided in a DVD with this product. A Touch pen is also included for effective touch interface. It supports on screen key board, it makes a stand alone system, no need of any external keyboard or mouse.
| Pin No. | Symbol | Description |
| 1, 17 | 3.3V | Power supply + (3.3V power input) |
| 2, 4 | 5V | Power supply + (5V power input) |
| 3, 5, 7, 8, 10, 22 | NC | NC |
| 6, 9, 14, 20, 25 | GND | Ground |
| 11 | TP_IRQ | Touch Panel interrupt, low level while the Touch Panel detects touching |
| 12 | KEY1 | Button |
| 13 | RST | Reset |
| 15 | LCD_RS | LCD command control, command / data register select |
| 16 | KEY2 | Button |
| 18 | KEY3 | Button |
| 19 | LCD_SI/TP_SCK | LCD display / touch panel SPI data input |
| 21 | TP_SO | Touch panel SPI data input |
| 23 | LCD_SCK/TP_SCK | LCD display / touch panel SPI clock signal |
| 24 | LCD_CS | LCD chip select signals, low-level selection LCD |
| 26 | TP_CS | Touch panel chip select signal, choose low touch panel |
Note: Raspberry Pi is not included in the package.
1 x 3.2 inch Raspberry Pi LCD 320x240 Resistive Touch Screen TFT Display SPI LCD for Raspberry Pi 3 Model B/2 B/B/A
