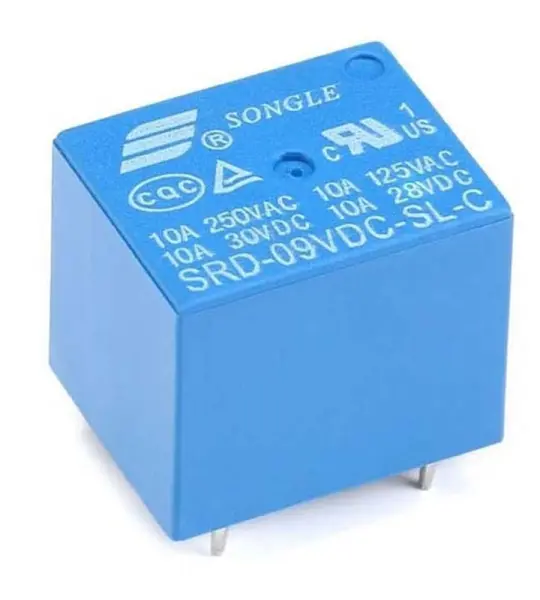

SRD-9VDC-SL-C SONGLE T-73 9V 5pin Relay

SRD-9VDC-SL-C SONGLE T-73 9V 5pin Relay


SRD-9VDC-SL-C SONGLE T-73 9V 5pin Relay

(Out of stock)



SRD-9VDC-SL-C Songle relay T73-9V 5pins

  • Model: SRD-09VDC-SL-C
  • Coil Voltage: DC 9V
  • Rated Load: 10A 250VAC; 10A 125VAC; 10A 30VDC; 10A 28VDC
  • Contact resistance: <= 100m (ohms)
  • Electrical Life: 100,000
  • Mechanical life: 10,000,000
  • Coil Power: 0.36W, 0.45W
  • Coil Pickup Voltage: <=75%
  • Drop-coil output voltage: >=10%
  • Ambient temperature: -25 degrees Celsius to +70 degrees Celsius
  • Coil and contacts: 1500VAC/min
  • Contacts and contacts: 1000VAC / min
  • Insulation resistance: >=100M ohm
  • Mounting form: PCB
  • Dimensions: 19mm (L) x 15.5mm (W) x 15.8mm (H)
  • Pins: 4.5mm
