• 【Wide input voltage】 5V-32V; Wide Output Voltage: 1.25V-35V；(with automatic step-up and down, within the scope of work, any voltage input can be regulated any voltage output).

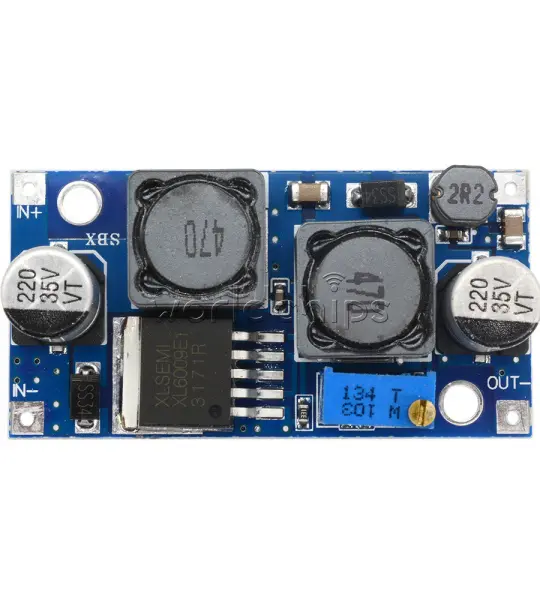

• 【Model specification】XL6009 step up down Converter module.
• 【4A high efficiency MOSFET switches】The efficiency of XL6009 can be up to 94%.
• 【high switch frequency 400KHz】Even if small capacity filtering capacitors can achieve very good results.
• 【Application】Car regulator , solar photovoltaic, wind power and other applications of voltage instability ..

Product Features

Auto start voltage will be pulled down to 7V less or smaller
engine at high speed when the voltage up to 15V or higher. For
12V electrical work hard at work, this automatic buck module
solves this problem , regardless of the input voltage is 5V or
12V or 32V, the output can be stabilized at 12V.

Parameters:
Wide input voltage: 5V-32V
Wide Output Voltage: 1.25V-35V
Built- 4A efficient MOSFET switches enable efficiency up to 94%;
(LM2577 current is 3A)
high switching frequency of 400KHz, the ripple is smaller and
smaller . (LM2577 frequency only 50KHz)
Input Current: 4A(MAX); no-load 18mA (5V input , 8V output ,
no-load is less than 18mA. Higher the voltage , the greater the
load current )
Output Ripple：50mV ( the higher the voltage , the greater the
current , the greater the ripple )
Load Regulation：± 0.5%
Voltage Regulation：± 0.5%
Operating Temperature：-40 ℃ ~ +85 ℃
Size: 48.1x24.9x14.0 mm
Weight: 17g
