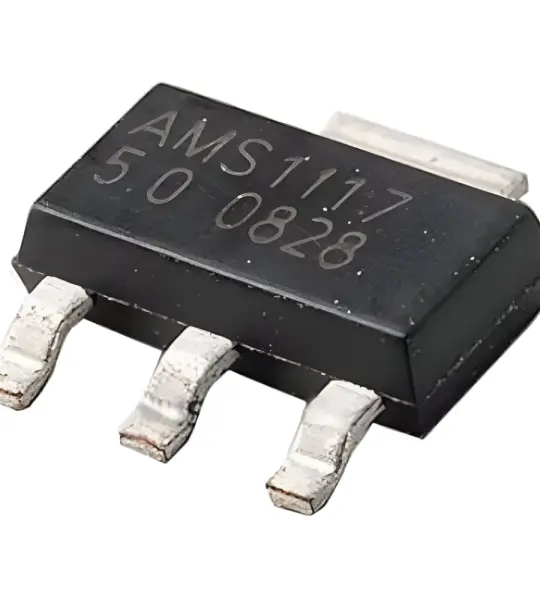

AMS1117-50 SOT23 Regulator

AMS1117-50 SOT23 Regulator

KWD0.500KWD0.500
0%Off

AMS1117-50 SOT23 Regulator





Share:

Pin Configuration

Pin Number

Pin Name

Description

1

Adjust/Ground

This pins adjusts the output voltage, if it is a fixed voltage regulator it acts as ground

2

Output Voltage (Vout)

The regulated output voltage set by the adjust pin can be obtained from this pin

3

Input Voltage (Vin)

The input voltage which has to be regulated is given to this pin



Features

  • Fixed/Adjustable 3-terminal Linear voltage regulator
  • Low Drop-Out (LDO) Voltage regulator
  • Fixed Voltage type: 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5V
  • Variable Voltage range: 1.25V to 13.8V
  • Output current is 1000mA
  • Maximum Drop-out Voltage: 1.3V
  • In-built Current Limiting and thermal protection.
  • Operating junction temperature is 125°C
  • Available in SOT-223, TO-252 and SO-8 Package
Component Datasheet
AMS1117 Datasheet
