The ESP32 Devkit V1 by Espressif Systems is currently the smallest microcontroller series in the world, featuring built-in WiFi and Bluetooth simultaneously, making it ideal for IoT projects or small electronic applications.

When comparing the ESP32 to the Arduino, Atmel, or PIC, you'll find that the ESP32 Devkit V1 offers more pins, a faster processor, and superior overall performance. Some even compare the Raspberry Pi to the ESP32, but the ESP32 is smaller, cheaper, consumes less power, and is more suitable for compact projects.

If you’re just getting started, check out our ESP32 Tutorials in Bangla.

Specification

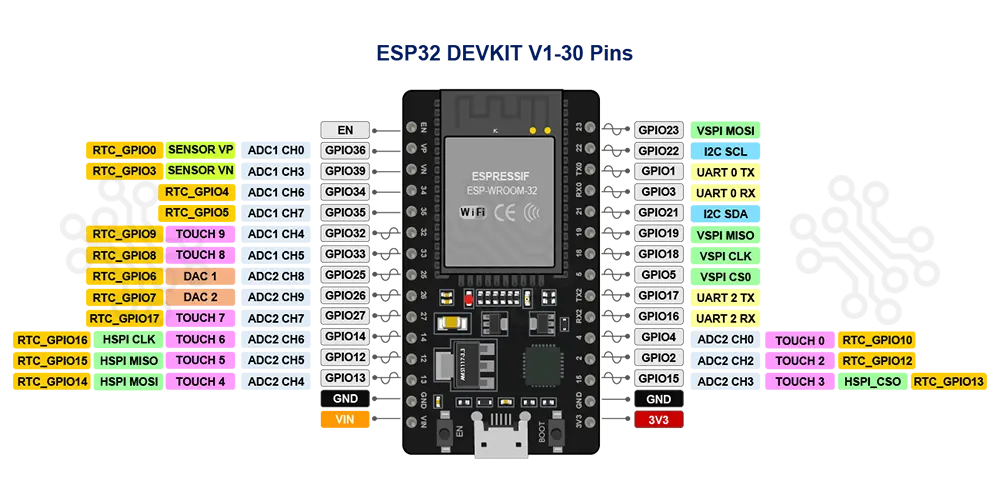

ESP32 Pin Diagram

All of the 25 GPIOs, including 15 ADC, 2 UART, 25 PWM, 2 DAC, 3 SPI, 1 I2C, 2 I2S, and 9 Touch functionality.

• HSPI and VSPI both can be used for SPI interfaces, where VSPI pins are commonly used in standard libraries.
• All GPIOs (except input-only) can be used as PWM pins.
• ADC2 pins can’t be used when WiFi is enabled.
• All DACs have 8-bit resolution.
• ESP32 has two I2C buses but no dedicated pins. It allows for flexible pin assignment. (GPIO21 and GPIO22 are commonly used.)
• Pulling LOW in EN, disable the chip (Hardware Reset)

Power Supply

The ESP32 Dev Board V1 features a positive voltage regulator, specifically the AMS1117-3.3, which enables operation with external power sources. This configuration eliminates the need to keep the board connected to your computer for power. When powered via the VIN pin, the input voltage is passed through the regulator, which then converts it to a stable 3.3V output, providing power to the board’s various power rails.

According to the datasheet, the AMS1117-3.3 can safely operate with input voltages ranging from 4.8V to 12V. However, higher input voltages may necessitate additional heat dissipation to prevent overheating. For optimal performance and thermal management, it is recommended to use an input voltage in the range of 5V to 6V.

For more information on the ESP32 power control system, we invite you to explore our Bengali tutorial titled Powering ESP32 with External Power.

How to Program?

The ESP32 can be programmed using various platforms, such as the Espressif IDE, Thonny IDE, PlatformIO with Visual Studio Code, and the Arduino IDE. A quick search on Google will yield numerous online tutorials covering these platforms. Some notable examples include:

• Installing the ESP32 Board in the Arduino IDE

• ESP32 Programming using Espressif IDE

ESP32-Based Projects

• Health Monitoring System
• Interfacing TFT LCD Touch Display with ESP32
• ESP32 Google Sheet Data Logger

ESP32 Arduino Examples

Once you have installed ESP Boards via the Board Manager of Arduino IDE, you can find various example projects, including Blink, Digital Read Serial, Analog Read Serial, Button, PWM, WiFI Web Server, WiFi Web Client, etc.

From the Arduino IDE, go to Tools > Board and select esp32 > ESP32 Dev Module. Once you have the ESP32 board chosen, go to File > Examples. Inside that folder, you will find various example sketches for different functionalities like WiFi, Bluetooth, Sensors, and more.

Warranty and Replacement

TechShopBD offers up to one year of warranty and replacement support for its products, depending on the supplier(s) and product(s). The specific warranty duration for each product can be found on the respective product page. To be eligible for warranty and replacement support, customers must agree to our terms and conditions.

Packaging Details

• 1 × ESP32 DEVKIT V1

Documents

• ESP32 DEV Kit V1 Datasheet
• ESP32 DEV Kit V1 Mechanical Dimension

Attention

Note: This item is non-returnable. If this item arrives damaged or is not functioning properly, please don’t hesitate to contact us to determine if further action is required.

Need Help?

Our engineers are available to assist you. If you have any queries, please leave a comment below or call 09678110110from 09:00 am to 06:00 pm (7 days a week). You can also reach us via WhatsApp or Facebook Inbox

The ESP32 Development Board DEVKIT V1 is your go-to tool for evaluating the powerful ESP-WROOM-32 module. Packed with Wi-Fi and Bluetooth capabilities, this board, powered by the ESP32 microcontroller, enables seamless connectivity and high-performance IoT applications—all within a single chip. Whether you're building wireless solutions, smart devices, or experimenting with your next big project, this board delivers endless possibilities.

Key Features

• Microprocessor: ESP-WROOM-32, 32-bit, 240 MHz
• Supply Voltage: 5V
• Connectivity:

  • 2.4 GHz Wi-Fi

  • Bluetooth 4.2

• Memory:

  • Flash Memory: 4 MByte (32Mbit) SPI Flash

  • ROM: 448 KB

  • SRAM: 520 KB

  • RTC SRAM: 16 KB

• Antenna: PCB Antenna
• Buttons: Reset and User/Firmware buttons
• Indicators:

  • User LED

  • Power LED

• USB Interface: USB C Type with CP2102 providing a virtual USB port for debugging and firmware upgrade
• Module Assembly: Assembled with ESP-WROOM-32 module
• Physical Dimensions: 51.5 x 28.5 mm

Power Supply Details

The DEVKIT V1 can be powered via:.

• USB Type-C Connector For USB-based power supply and programming.

• Vin Pin: For direct external DC power input (6V to 20V).

⚠️ Important Note: Avoid input voltages above 12V to prevent overheating or damage to the onboard voltage regulator. The recommended range is 7V–12V.
